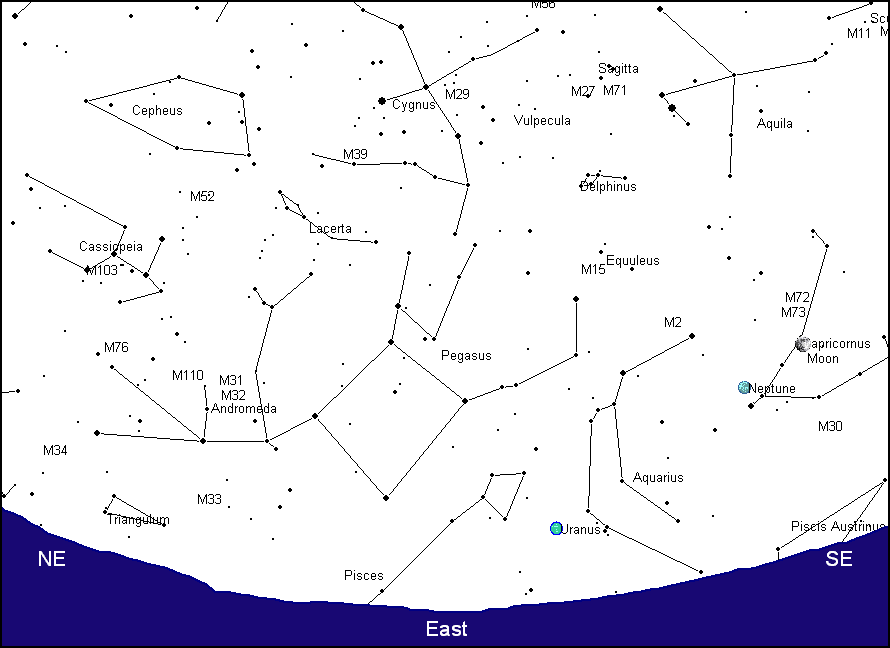

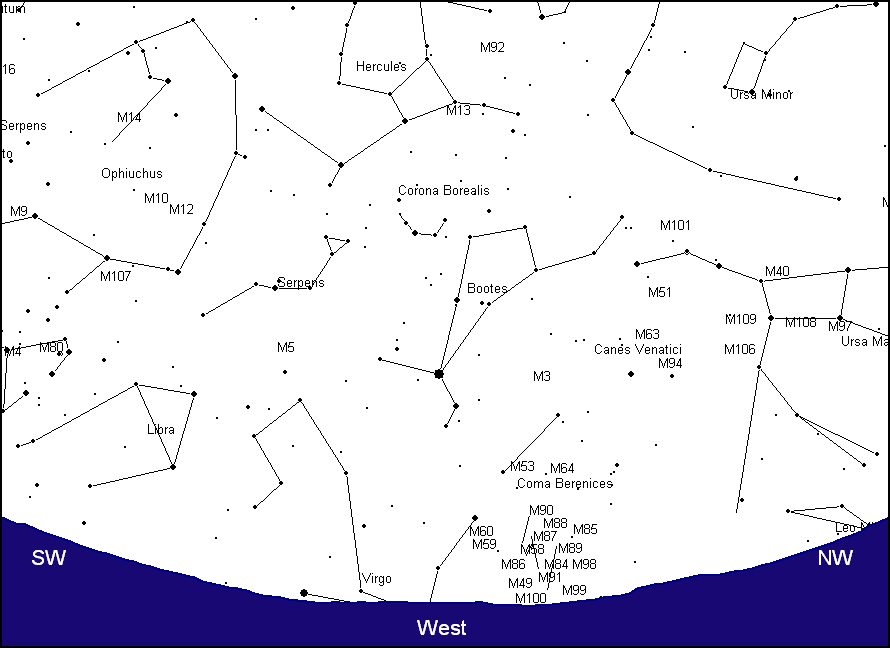

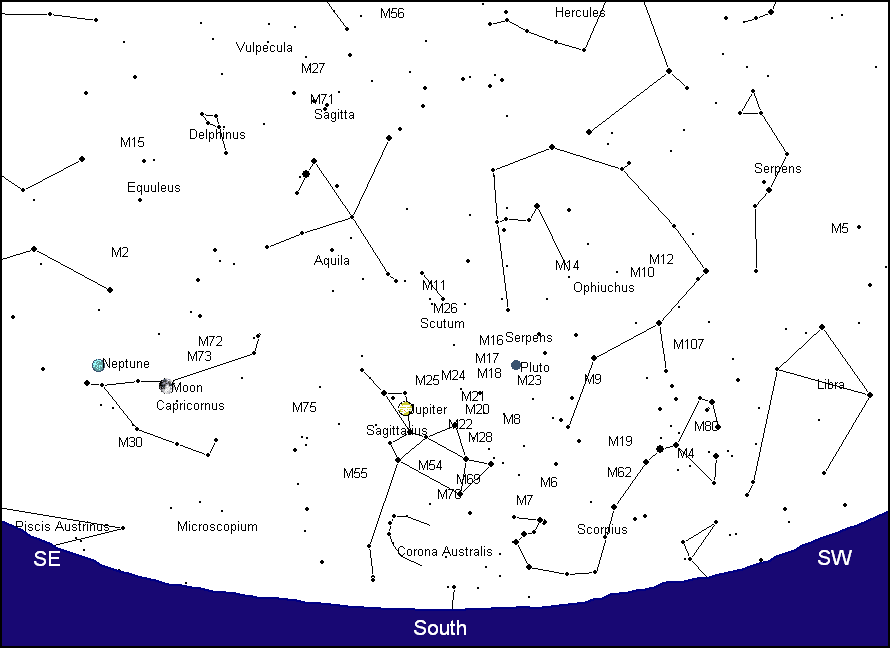

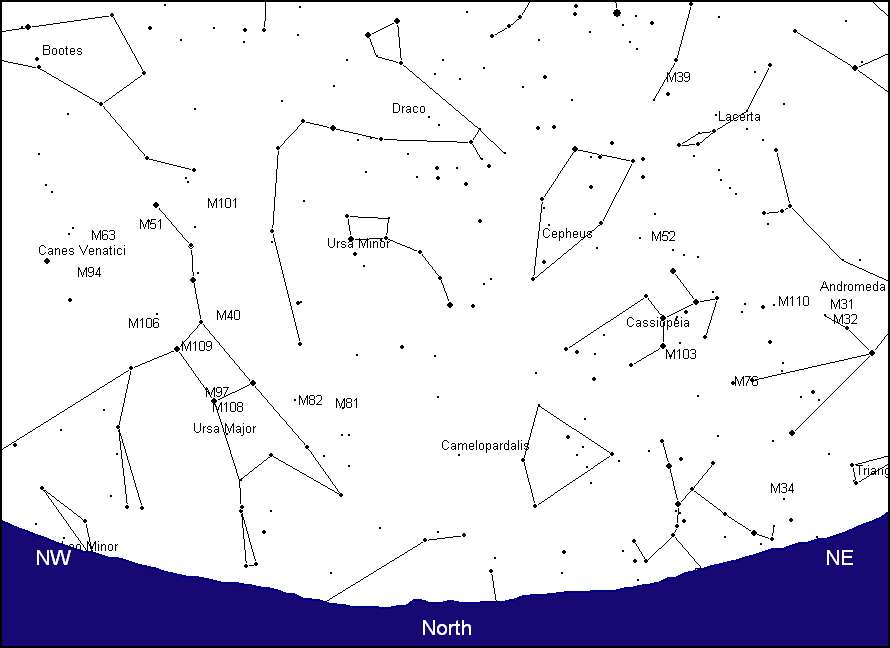

Print Large Sky Charts For 10 p.m. EDT:   NORTH | EAST | SOUTH | WEST | ZENITH

[Moon Phases]

Solar X-rays:
Geomagnetic Field:
Status
Status
Status Current Moon Phase
---------------
624    AUGUST 3, 2008:   Perseid Meteors Await
It was the summer of ‘69, and my friend, Mark Adams, had taken a bus from Warrington, PA to Allentown to observe the Perseid meteor shower with me at Pulpit Rock, a 1535 foot escarpment on the Blue Mountains about 20 miles west of the city. We had been preparing for this evening for months, and everything was going according to plans. Weather conditions were cooperative with an autumnal like nip in the air. Driving up the Hamburg Reservoir access road, I noticed a large patch of mud. I accelerated, hoping that my momentum would carry me across the mire. It didn’t. When I got out, I discovered that my Chevy Corvair was down to its rear axel in goop. The first stars were already shining in the dimming light. So close, yet so far. As we assessed our dire situation, the drone of a vehicle in low gear coming down the mountain caught our attention. When it crossed the bridge just ahead of us, it was Ralph Althouse, the reservoir caretaker in his tow truck. Our luck held throughout that exceedingly transparent night, and I saw more meteors than at anytime during my life, 217 according to my records. Perseid meteors continue to please, and they will be on tap anytime this week and next, but best on the morning of Tuesday, August 12. Observe after midnight, and more preferably after moonset which on the 12th will be between 1 a.m. and 2 a.m. Dress more for winter because August nights can be chilly. Recline on an air mattress and in a sleeping bag covered with a plastic tarp to protect against the wetting dew. Focus your view overhead which is normally the darkest part of the sky and wait. You’ll soon start seeing shooting stars and their luminous trains. Almost all will appear to radiate from a location in the NE just above the star pattern of Perseus. A locator map can be found below. Much success!

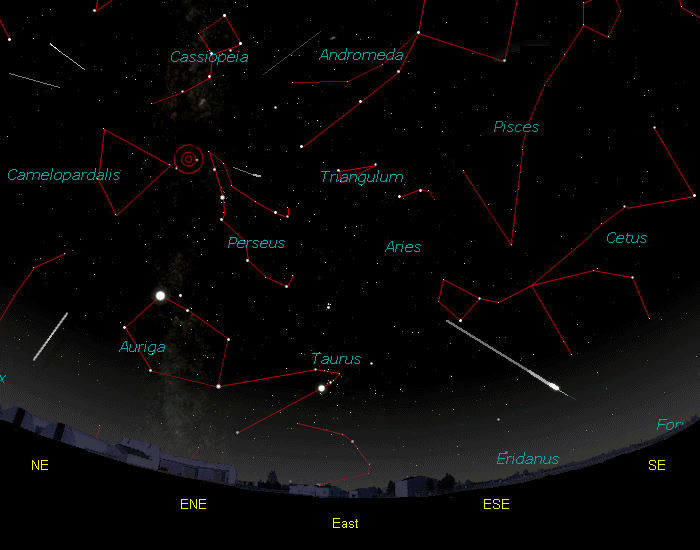

[Perseid Meteors at 3:00 a.m.]
The Perseid meteor radiant is marked with a bull's eye in this 3:00 a.m. map by Gary A. Becker.


625    AUGUST 10, 2008:   Heaven on Earth
Living on the East Coast presents its share of opportunities, as well as challenges. Astronomy has not only been my hobby since third grade, but it is also my vocation. I teach in a planetarium, and they are almost always found in urbanized locals where the real sky is difficult to access because of light pollution. My solution has been to travel to the Southwest during the summer months and volunteer for the National Park Service. Bryce Canyon in SW Utah and Chaco Culture in NW New Mexico have served to give me plenty of astronomy fixes during my six years of participation. But now with gas prices soaring to record levels, journeying 1,800 miles over three days to view the sky does not seem as practical anymore. A better solution for my wallet has been to go local. Luckily for me, Pennsylvania has designated Potter County’s Cherry Springs State Park a dark site for astronomical viewing. It is about one-tenth the distance and reachable in four hours on only one tank of gas. On most days when the moon is not a deterrent, several dozen to over 100 observers will be setting up by light and happily observing by night. It is truly heaven on Earth for astronomy aficionados. The public is also invited, and no telescope is necessary. I realize that most readers of this column are not Pennsylvanians, but there are many rural state and national parks throughout the US and numerous star parties to boot, especially during the summer and fall months. Go to http://www.skyand telescope.com/community/calendar to find a local observing event or simply Google your state’s state parks. Remember, if you’re going to rub elbows with stargazers, make sure your flashlight is covered with red cellophane. Astronomers become weird in white light. I call it the Vampire Syndrome. Photos are online.

[Potter County Skies]
In Carter Camp, PA where I spent time photographing the night sky with friends, Matt and Marcella Gustantino, our cabin began to look very inviting around 2:30 a.m. as a thunderstorm moved into the area. The trees were light painted with my headlamp. Photography by Gary A. Becker…

[Milky Way from Carter Camp, PA]
The East Coast is not known for its radiant skies, but in certain areas like Potter County (north central), PA the nights can be as enthralling as the desert Southwest. There is a lot happening in this ultra wide-angle Canon 20Da photo. Thin, high clouds can be seen to the right as they intersect the soft summer glow of the Milky Way. An effect known as Rayleigh scattering is filtering the shorter wavelengths (blues and greens) of light near the horizon, causing the already mellow yellow central bulge of our galaxy to become orangey, similar to the color of the sun when it sets. Above the middle of the photo along the plane of the galaxy, the somber reddish glow of hydrogen clouds are visible, indicating that there is much more to our Milky Way than just stars. In addition, the dust from countless supernova explosions during the last 12 billion years hides and darkens the galactic plane. The bright star, lower center, is really the planet Jupiter in this five minute August 1 image by Gary A. Becker...


626    AUGUST 17, 2008:   "Weather" to Observe
Mid-August through October is a superb time of the year to observe the night sky. Temperatures are cooler, but not cold, and that crisp Canadian air begins to filter into much of the US to bring us some of the clearest, haze-free, nights of the year. But unless you live in Albuquerque, NM or other sunny climes of the desert Southwest, reliable forecast products are necessary to insure that all of those preparations don’t go for naught. For me a truly dark sky is four hours away in Potter County, PA. Its location is in the cloud belt, a region stretching from central PA to upstate NY, where Lake Erie and Ontario greatly increase the chances of nighttime cloudiness. My weather page, www.astronomy.org/weather/Weather.html, has a number of useful links which help me decide whether I should or shouldn’t go observing. The page loads with a National Weather Service Watch/Warning map because I enjoy knowing the hotspots. Geomagnetic activity and the current lunar phase come next, as well as a number of Clear Sky Charts from my favorite locales which I like to scrutinize. Monitoring is a key factor in making a decision to observe because there are often local weather anomalies which are not taken into consideration in a general forecast. The charts provide information on cloud cover, transparency (clarity of the atmosphere), length of darkness, seeing (how calm the atmospheric layers are) wind, humidity, and temperature. This Canadian product has over 1900 different sites across North American and can be accessed at http://cleardarksky.com/csk/. If there are no Clear Sky Charts near your town, you can request one for your locality as long as it is more than 15 miles from another Clear Sky Chart. Instructions can be found on the website. More about “weather” or not to observe next week...

[Photographic Perseid Radiant]
"X" marks the actual spot of the Perseid radiant on the morning of August 12, 2008. Two Perseids can be seen in the lower right of the photo in the northern portion of the constellation of Perseus. The "W" represents the star pattern of Cassiopeia. The "blue meteor" in Cassiopeia is really Iridium communications satellite, number 90, glinting in the sun's early morning light at 4:52-02 EDT. This is a composite image created from three separate 30 second photos. Friends and I were supposed to travel to a darker area, but unstable weather conditions kept us observing in our respective front and backyards. Then it cleared around 1 a.m. Photo Details: Canon 40D camera equatorially mounted, 24mm, F/2.8, Nikkor lens (EFL 38mm), ASA 800 image by Gary A. Becker from light polluted Coopersburg, PA…

[Full Moon]
What's so special about this full moon? The photo was "snapped" on August 17 at 12:58 a.m. EDT, just under six hours after the conclusion of a partial lunar eclipse. The eclipse was visible throughout most of the world, but not from North America. Photo Details: An equatorially mounted Canon 40D camera was attached to a Questar 3.5-inch telescope, EFL 2240mm, 1/125 second, ASA 200. Gary A. Becker image...

[Full Moon, Crater Tycho]
An enlargement of the image above, shows the lunar southern hemisphere concentrating on the famous crater Tycho. Note the ruggedness of the moon's limb (edge). Gary A. Becker image...

[One Day after Full Moon]
The moon, 31 hours after its full phase. Photo Details: An equatorially mounted Canon 40D camera was attached to a Questar 3.5-inch telescope, EFL 2240mm, 1/125 second, ASA 320. Gary A. Becker image...

[One Day after Full Moon]
This is an enlargement of the previous image showing detail on the moon's northern (l) and southern hemispheres. Gary A. Becker photo...

[Two Days after Full Moon]
The moon, 55 hours after its full phase. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/125 second, ASA 500. Gary A. Becker image...

[Two Days after Full Moon]
This is an enlargement of the previous photo showing detail on the moon's southern highlands. The dominant crater on the left is 53 mile-in-diameter Tycho. On the right, Vallis Rheita, which at its widest is 19 miles, cuts a dark groove across the teminator, where the sun is setting. Gary A. Becker image...

[Three Days after Full Moon]
The moon, 80 hours after its full phase. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/125 second, ASA 500. The atmosphere was very steady even though a cold front had passed through the area only 12 hours earlier. Gary A. Becker image...

[Three Days after Full Moon]
This is an enlargement of the previous photo showing detail on the moon's southern highlands. Gary A. Becker image...

[Four Days after Full Moon]
Waning gibbous moon, four days after being full, July 21 at 12:56 a.m.: Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/125 second, ASA 500. Gary A. Becker image...

[Four Days after Full Moon, Northern Hemisphere]
This is an enlargement of the previous photo showing detail in the moon's northern hemisphere. The two dominent craters near the terminator are Aristoteles (larger) and Eudoxus. Gary A. Becker image...

[Five Days after Full Moon]
The moon, five days after its full phase on August 22 at 4:49 a.m. EDT Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/60 second, ASA 400. Gary A. Becker image...

[Five Days after Full Moon-Southern Highlands]
An enlargement of the previous image focusing on the lunar southern highland... Gary A. Becker image...

[Five Days after Full Moon-Northern Hemisphere]
An enlargement of the moon five days after its full phase, focusing on the northern hemisphere... Gary A. Becker image...

[Six Days after Full Moon]
This picture of the moon was taken six days after its full phase at 4:49 a.m. EDT on August 23. At 8 p.m. the moon was at last quarter. Seeing conditions were nearly perfect, a nine out of 10. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/40 second, ASA 400. Gary A. Becker image...

[Six Days after Full Moon-Southern Highlands]
An enlargement of the lunar southern highlands from the previous image Gary A. Becker image...

[Six Days after Full Moon-Northern Hemisphere]
An enlargement of the moon six days after its full phase, focusing on the northern hemisphere... Gary A. Becker image...


627    AUGUST 24, 2008:   Getting a Handle on the Weather
There is nothing like getting all of your gear together for a night under the stars, only to be defeated by bad weather. Knowing what lies ahead can be just as critical as making the observations. Last week, I spoke about my weather page at www.astronomy.org/weather/Weather.html and the very versatile Clear Sky Charts specifically intended for astronomers found at http://cleardarksky.com/csk/. The National Weather Service is also experimenting with a product which allows sky watchers to gain a much better foothold about short term weather conditions. Go to www.weather.gov/. After the page loads in the upper left column, type the city or town in which you live. Click on the “Go” button for your local seven day forecast. Scroll to the bottom of the page, and you will see the National Digital Forecast Database to your left. Click on either of the maps. When the page loads, you can zoom in by clicking on your specific state or the area to be investigated. On the left will be significant factors regarding the weather forecast given in three hour intervals. My favorites are weather (basic forecast), temperature, dew point (atmospheric moisture), and sky cover (percentage of cloud cover). Air temperatures that are near dew point temperatures indicate a high relative humidity and equipment that will be covered with saturating dew. At the top of the column, you can move ahead by 12-hour increments for one week; however, don’t get too excited about this feature since weather predicting is as much of an art as it is a science. I wouldn’t advance more than 48-hours because at two days, forecast accuracies drop to about 50 per cent. Still, it is fun to look. Weather conditions play a critical role in the enjoyment of astronomy. I know because as a kid I did a lot of sulking over clear days that turned into cloudy nights.

[Six Days after Full Moon]
The moon, shortly after last quarter at 4:31 a.m. EDT on August 24. Seeing conditions were nearly perfect, an eight out of 10, but the sky was laced with cirrus clouds. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/20 second, ASA 400. Gary A. Becker image...

[Waning Crescent Moon-Northern Hemisphere]
Fifty-eight mile in diameter Copernicus dominates the lunar landscape in the northern hemisphere shortly after last quarter moon. Above and to Copernicus's right is Eratosthenes (36-miles). Gary A. Becker image...

[Waning Crescent Moon Close-ups]
(L) Tycho crater's central peak (top center) just catches the last rays of a setting sun. (R) From bottom left to upper right the craters are Lansberg (24 miles), Reinhold (30 miles), Copernicus (58 miles) and Eratosthenes (36 miles). Gary A. Becker image...

[Waning Crescent Moon]
Copernicus crater sinks into the abyss of night. I got lucky because the heavens were mostly cloudy, except for a small clear patch of sky where the moon was located. Seeing conditions were a six out of 10. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/15 second, ASA 400. Gary A. Becker image...

[Waning Crescent Moon]
What is this? Another clear morning in Coopersburg, the tenth in a row… The moon is in its 25th day and just 24 percent sunlit. The well-defined, small crater above center and near the terminator is Kepler, just under 20-miles in diameter. Mare Humorum is the large dark basin near the bottom of the image. Seeing conditions were a five out of 10. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/20 second, ASA 500. The image was taken at 4:59 a.m. Gary A. Becker photo...

[Waning Crescent Moon]
The eleventh clear morning in Coopersburg, PA… The weather is forecast to be cloudy tomorrow. The moon is in its 26th day and just 15 percent sunlit. Seeing conditions were a three out of 10. Photo Details: An equatorially mounted Canon 40D camera was attached to a 3.5-inch Questar telescope, EFL 2240mm, 1/15 second, ASA 640. The image was taken at 5:05 a.m. Gary A. Becker photo...

[Dusk Iridium Flare]
Iridium communications satellite, number 84, creates a bright -6 magnitude glint over hazy Coopersburg, PA in late, moon-drenched twilight on August 13. Using a portable atomic clock, the exposure was manually triggered at 9:25-10 and ended at 9:25-28. The flare lasted for about five seconds and was right on schedule at 9:25-17. Photo Details: Tripod mounted Canon 40D camera directly under a high pressure sodium vapor lamp, 18 seconds, ASA 800, 24mm, F/2.8, Nikkor lens (EFL 38mm), with a Borg-Hutech light pollution suppression filter attached… Gary A. Becker image...


628    AUGUST 31, 2008:   God and the Space Junky
I had been talking about the Ancestral Puebloans to my senior level astronomy class at Dieruff H. S. in Allentown. These Native Americans, who flourished between 850 and 1300 AD, inhabited the Four Corners region of the desert Southwest, where the states of New Mexico, Colorado, Utah, and Arizona join. In order to have achieved success in their harsh environment, these people needed to formulate an accurate and reliable calendrical system. That was where astronomy and observations entered into the discussions. Their calendar schemes were ingenious, using the interplay of light and shadow—created by the sun—on rock walls and masonry structures. Over time, these sky watchers who traced the cyclic nature of Sol became powerful, religious priests. They steeped their observations in rituals which demanded the participation of commoners as well as warlords to keep the heavenly vault in order. In front of me there is a waving hand. “Yes, Emily,” I respond. There is a pause as Emily Plessl connects with my eyes. “Do you believe in God,” she asks forcefully? “Absolutely,” is my almost immediate response. There is another pause. I gesture for Emily to expand on her query. Finally I verbalize, “Would you like to continue?” Emily, who I later find out is a devout Mormon, quietly says, “No.” Usually my discussions about God and the universe are a little bit lengthier, but they happen in every semester astronomy class that I teach. In fact, often these types of inquiries arise numerous times. They underscore a basic need in teens for someone—anyone to give them an honest evaluation or confirmation about God and spirituality. For me, a space junky, the answer to the age old question about the existence of God is as simple as going outdoors on any star-splashed night and looking up—YES!

[Emily A. Plessl]
"Do you believe in God," was the question that Emily Plessl asked me one day in class? I answered in the affirmative. Here Emily is resting during the strenuous Pueblo Alto hike in New Mexico's Chaco Culture National Historical Park on a spring 2005 field experience. Read above. Photography by Gary A. Becker...

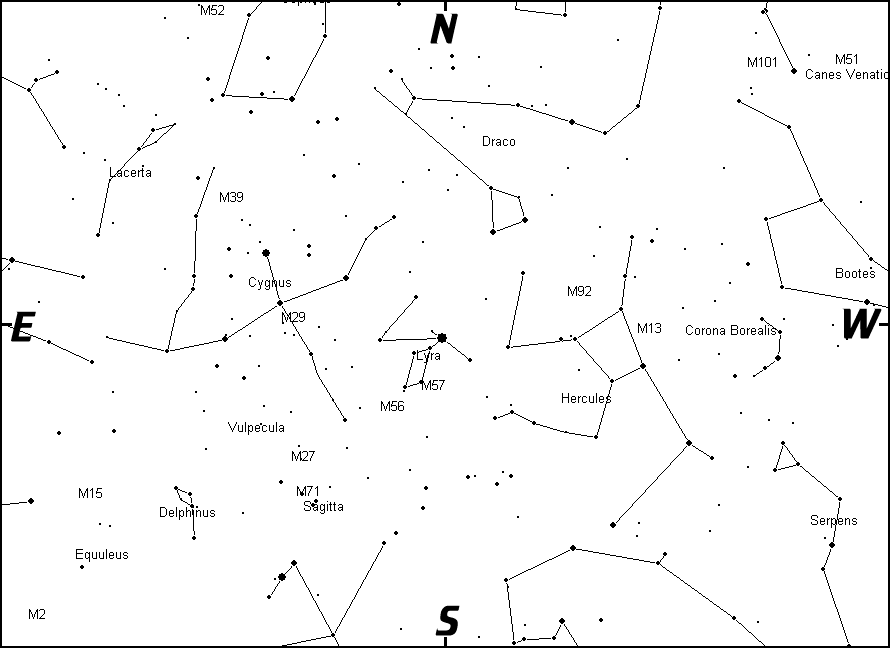

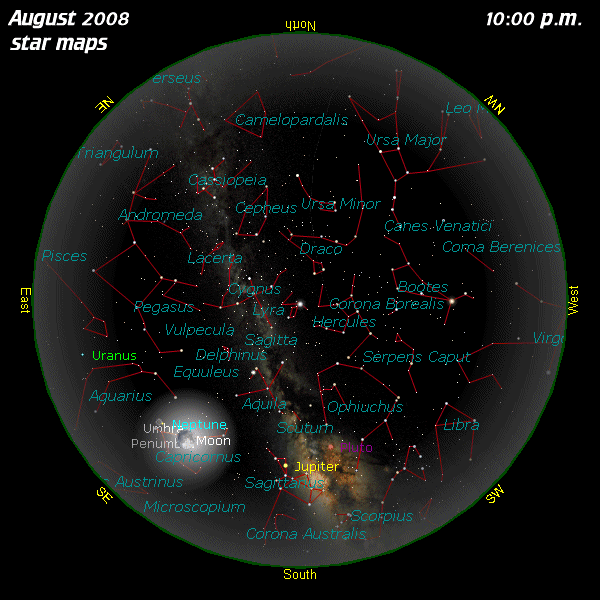

[August Star Map--North]
